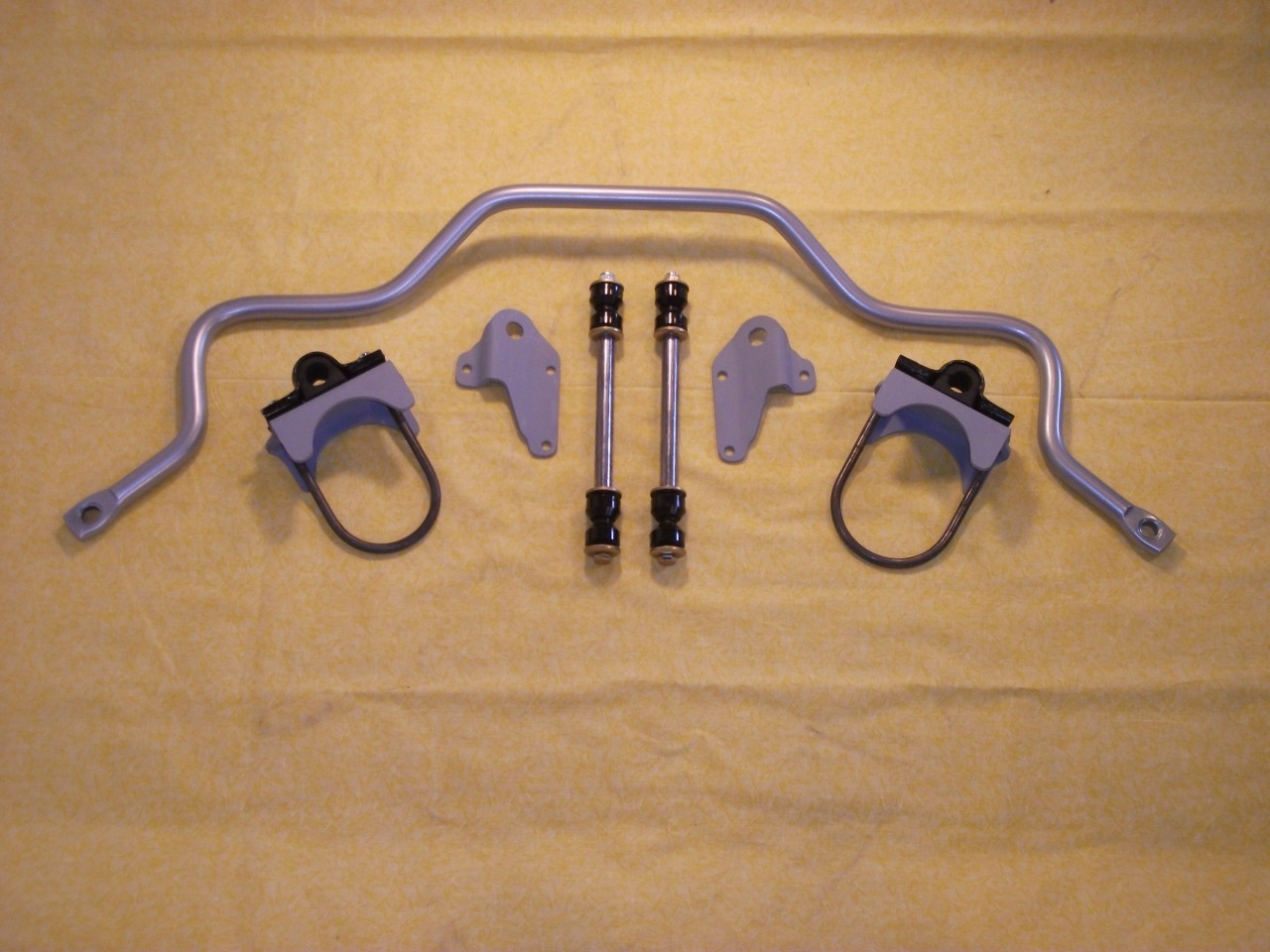

SB-1040RAL Rear Sway Bar for 1940 Chevy (Lincoln-Versaille Rear End). The compliment to our front sway bar for increased handling and elimination of road sway. For best results use front and rear bars together. All necessary linkage and mounting furnished. Use with Lincoln-Versaille rear, stepped housing only.
Installation Instructions for SB-1040RAL Rear Sway Bar for 1940 Chevy (Lincoln-Versaille Rear End):
Swaybar should be used with Chassis Engineering rear-end mounting kit for best results. Bar fits 8″ Ford, small housing 9″ Ford, Chevrolet 10 and 12 Bolt and many other rear-ends.
Note: This bar will fit a great many different cars. Since it bolts to the rear-end, it is fairly easy to mount, requiring only the fabrication of the linkage mounts to the frame.
1. Bolt bar to the bottom of the rear axle as shown below. Make sure it is centered side to side. The drawing shows a bolt-on bracket, which may vary slightly in appearance. The ends extend forward under the axle, the dip goes down.
2. Clamp frame mounts for linkage in place as shown in the drawing. Left and Right are mirrors. Make sure the mount is straight before drilling holes. Make sure the linkage is at 90 degrees to linkage.
3. After locating the mounting point, clamp the bar to the bottom frame lips and drill mounting holes using the mount as a drill guide. Bolt it in place.
4. Assemble linkage and finish the installation as shown below.
Note: use of lowering blocks may cause the shocks and bar to hit. In this case the bar must also be lowered on the rear end
