1937-1939 Chevy Transmission Crossmember Turbo 700R

SKU: ES-1125

Description

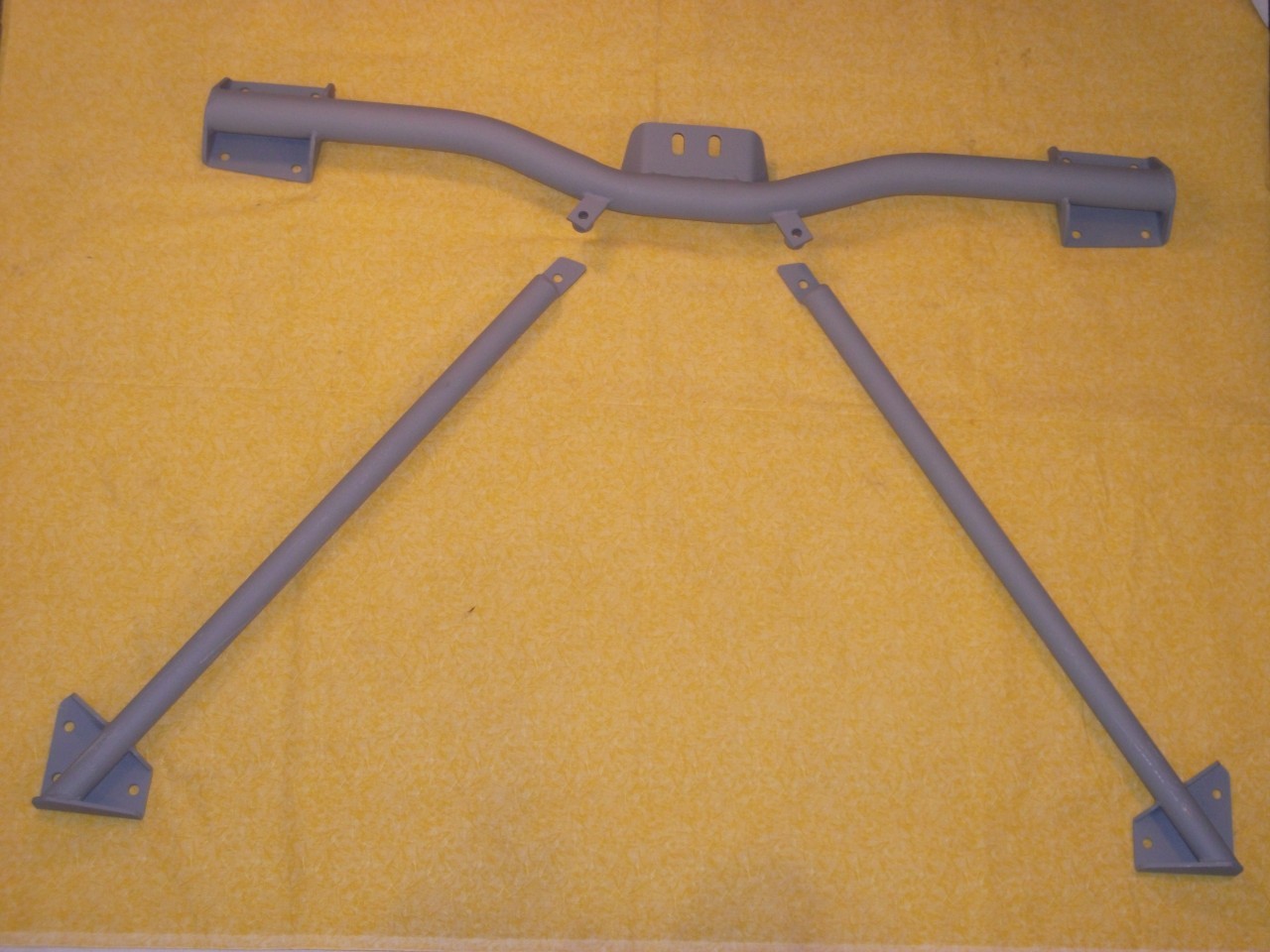

ES-1125 Transmission Crossmember for 1937-1939 Chevy w Turbo 700R Bolt in for use with transmission described below. Required for power brakes but can also be used with a manual brake system. This kit Includes: Removable bolts Instructions Crossmember Turbo 700R, Overdrive Transmission Installation Instructions: Universal Transmission Mount For Chevrolet Turbo… Read More

Category:

$115.00
PRICE
QTY

Description

ES-1125 Transmission Crossmember for 1937-1939 Chevy w Turbo 700R

Bolt in for use with transmission described below. Required for power brakes but can also be used with a manual brake system.

This kit Includes:

Removable bolts
Instructions
Crossmember
Turbo 700R, Overdrive Transmission

Installation Instructions:

Universal Transmission Mount For Chevrolet Turbo 700R type overdrive transmission for 1937-1939 Chevy Car.

Use Chassis Engineering Transmission Cushion Set SS-0114

Step 1. Install the transmission crossmember on your Chevy frame. Measure from the inside of the frame at the rivet for the running board brace to get the 3/4 inch measurement.

Step 2. Clamp the transmission mount in place, then locate and drill the holes. Note, the mount goes towards the front.

Step 3. Bolt the support rods to the back of the crossmember, bolt support-rods to the crossmember first.

Step 4. Swing the support rods to the side of the frame. Center the support rod mounting pads under the frame rail and clamp them in place. Now drill the holes and bolt them to the bottom of the frame.

UntitledWARNING: This product can expose you to chemicals including nickel and urethane, which are known to the State of California to cause cancer and birth defects or other reproductive harm.  For more information go to www.P65Warnings.ca.gov.

Additional information

Weight 30 lbs
Dimensions 49 x 8 x 4 in
