Description

CP-2127 Small Block Chevy V8 Engine Mounting kit for 1941-1948 Mercury with IFS

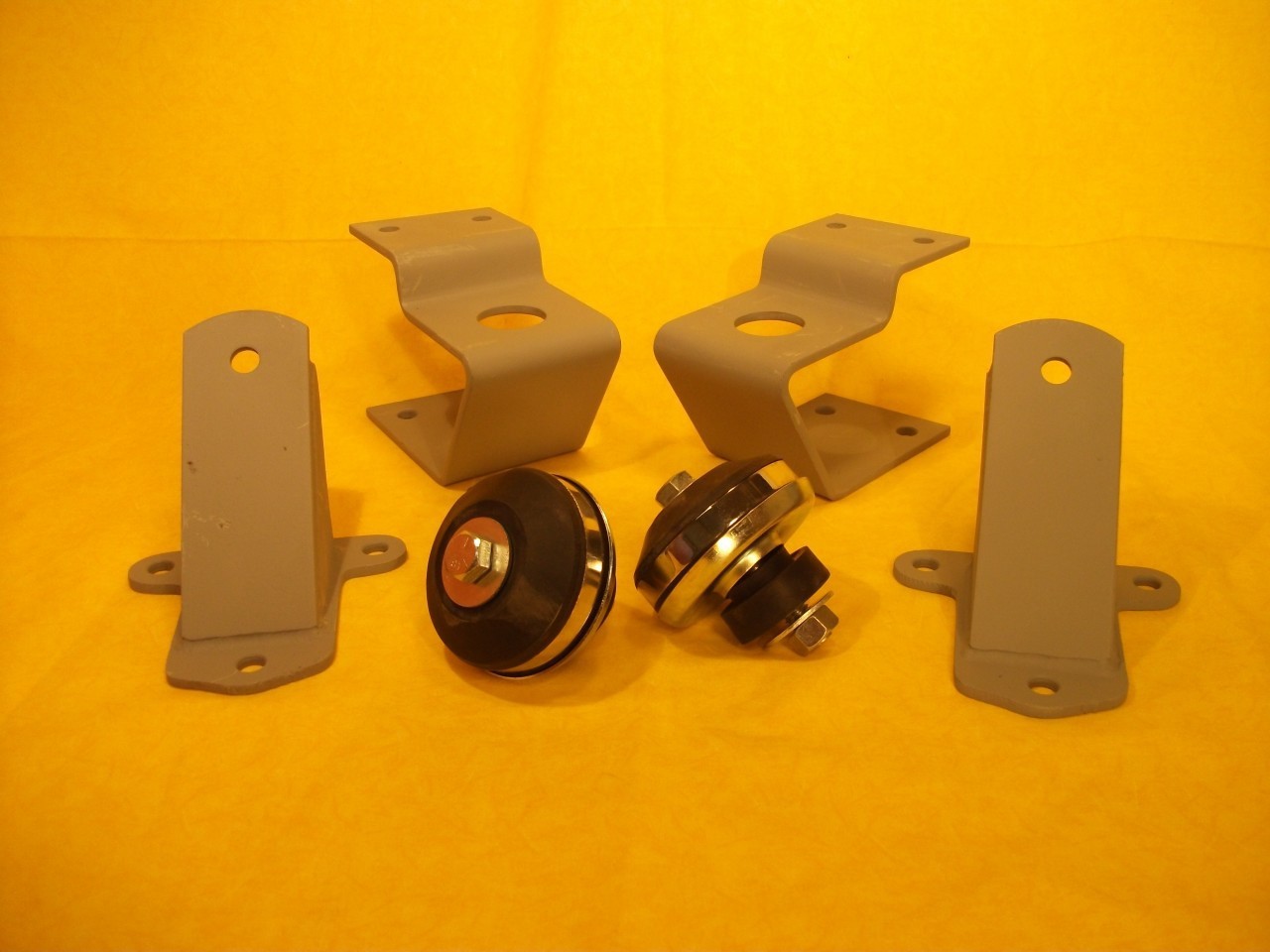

This kit includes:

• Bolt on frame adapters
• Chassis Engineering engine side mounts
• Bolt cushion set
• Hardware
• Instructions

Engine mounts fit:

• Chevy V8, 1958-up : 283, 302, 307, 327, 350, 400 CI Small Block
• Chevy V6 with the distributor at rear

Installation Instructions for CP-2126 Chevy Small Block V8 Engine Swap Kit for 1941-1948 Mercury Car with IFS

1. Remove original steering mount from frame.

2. Place frame adapters around frame and clamp into position shown below. Make sure adapters are straight and level.

3. Drill bolt holes in frame to 3/8″. Install and tighten.

4. Bolt engine mounts to engine. Install cushion set

WARNING: This product can expose you to chemicals including nickel and urethane, which are known to the State of California to cause cancer and birth defects or other reproductive harm.  For more information go to www.P65Warnings.ca.gov.
